Regenerative Thermal Oxidizer (WK RTO)

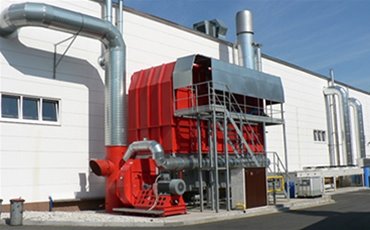

Regenerative Thermal Oxidizers — High-Efficiency VOC Destruction
WK’s regenerative thermal oxidizer is a high-efficiency system for VOC destruction and industrial exhaust treatment, achieving up to 99.99% destruction efficiency and 96% thermal efficiency. Each RTO is configured in 3-can or 5-can arrangements and available as a gas-fired or electric RTO, engineered to your exhaust volume, composition and emissions compliance requirements.

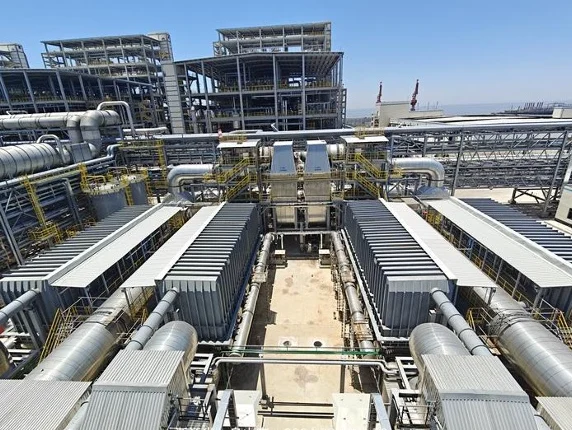

System Design and Configuration

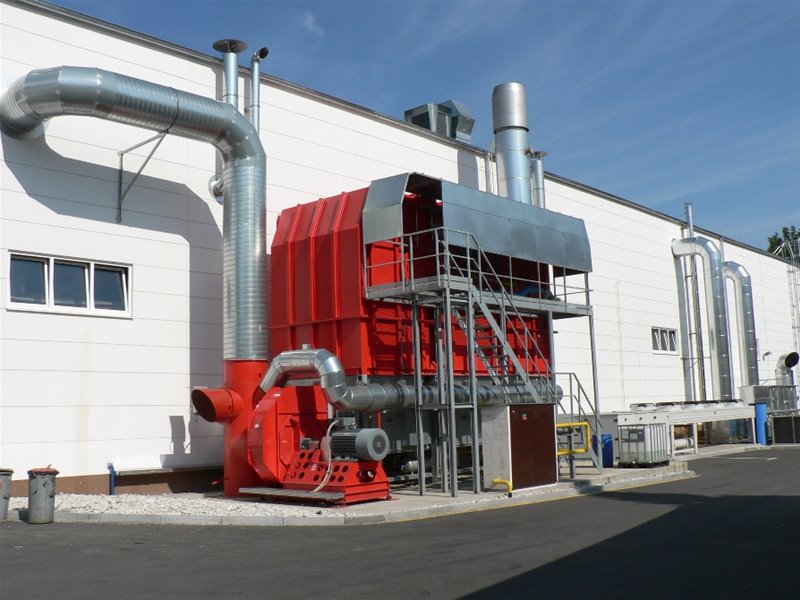

WK RTOs are configured in 3-can or 5-can arrangements depending on exhaust volume, composition and destruction efficiency requirements. Each canister houses a structured ceramic heat transfer bed, with flow direction alternated between canisters on a timed cycle to sustain continuous operation and uniform combustion chamber temperature.
The combustion chamber is heated by a low-NOx burner system that operates in flameless oxidation mode during the majority of normal operation. Flameless combustion eliminates NOx formation from the burner itself, reduces auxiliary fuel consumption by lowering the requirement for combustion air and produces more uniform temperature distribution across the ceramic bed, which directly supports higher and more consistent destruction efficiency.
Where the exhaust stream contains waste liquids with combustion value, WK RTO systems can be configured with a waste liquid injection module. The calorific content of the injected liquid offsets natural gas consumption, reducing operational energy expenditure.
Performance Parameters
Electrically Heated RTO

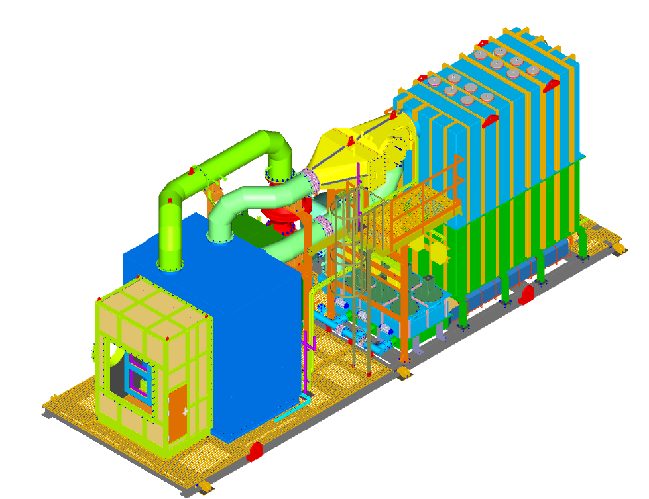

An electrically heated RTO variant (E-RTO) is available for applications where elimination of gas-fired combustion is required. The E-RTO replaces the gas burner with a resistance heating element array designed for uniform temperature distribution across the combustion chamber cross-section, verified by computational fluid dynamics modeling during the engineering phase.
POPPET VALVE DESIGN
The flow switching function in a regenerative thermal oxidizer is carried out by poppet valves, which open and close on each canister in sequence to direct exhaust through the ceramic bed and route treated gas to the stack. Valve tightness directly determines system destruction efficiency, as any leakage of untreated gas into the outlet stream reduces effective VOC removal.

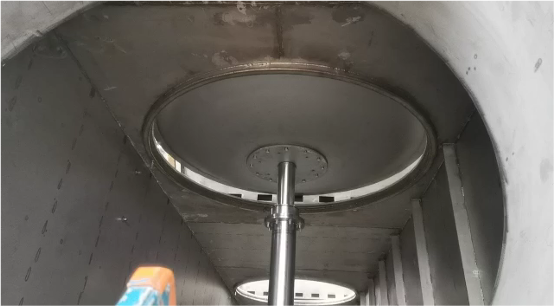

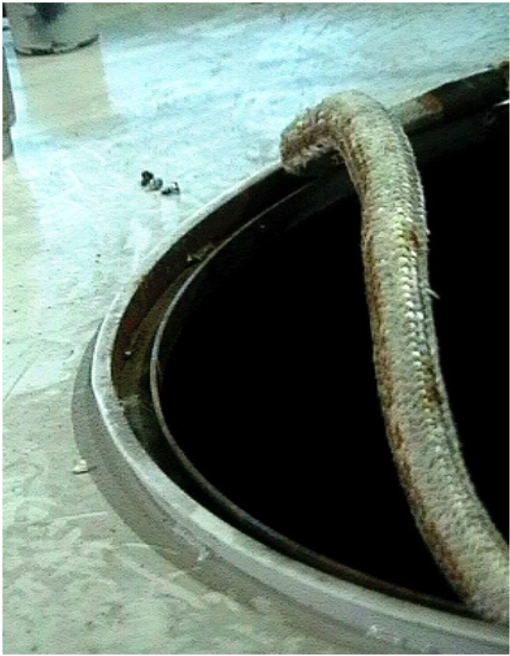

WK’s poppet valve design uses a double-layer flexible ceramic seal with sealing air, which prevents metal-to-metal contact at the valve seat and maintains full closure tightness at elevated operating temperatures and during high-temperature burn-out cycles. The valve structure is designed to resist deformation at temperature, and WK provides a lifetime guarantee on poppet valve performance.
Ceramic Media Design and Serviceability

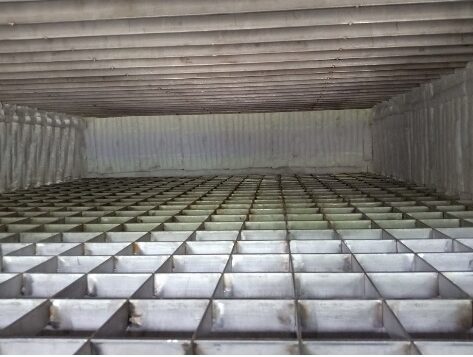

The heat transfer ceramic installed in WK RTO canisters is supplied and sized by WK as part of the engineered system. For exhaust streams containing condensable components, the lower ceramic layer, referred to as the cold-face or sacrificial layer, is subject to fouling over time and requires periodic replacement.
WK’s canister design separates the cold-face layer from the main ceramic bed, allowing only the lower wearing section to be replaced during scheduled maintenance rather than the full ceramic package. This reduces downtime per maintenance interval and lowers the total cost of ceramic replacement over the operating life of the system.
LOW-NOx BURNER SYSTEM
WK RTOs are equipped with a low-NOx burner and gas injection system designed to operate in flameless oxidation mode during normal operation. In flameless mode, natural gas is oxidized without a visible flame, producing near-zero NOx emissions for the majority of the system’s operating hours.
