WORK DECKS

Open and Enclosed Workstations

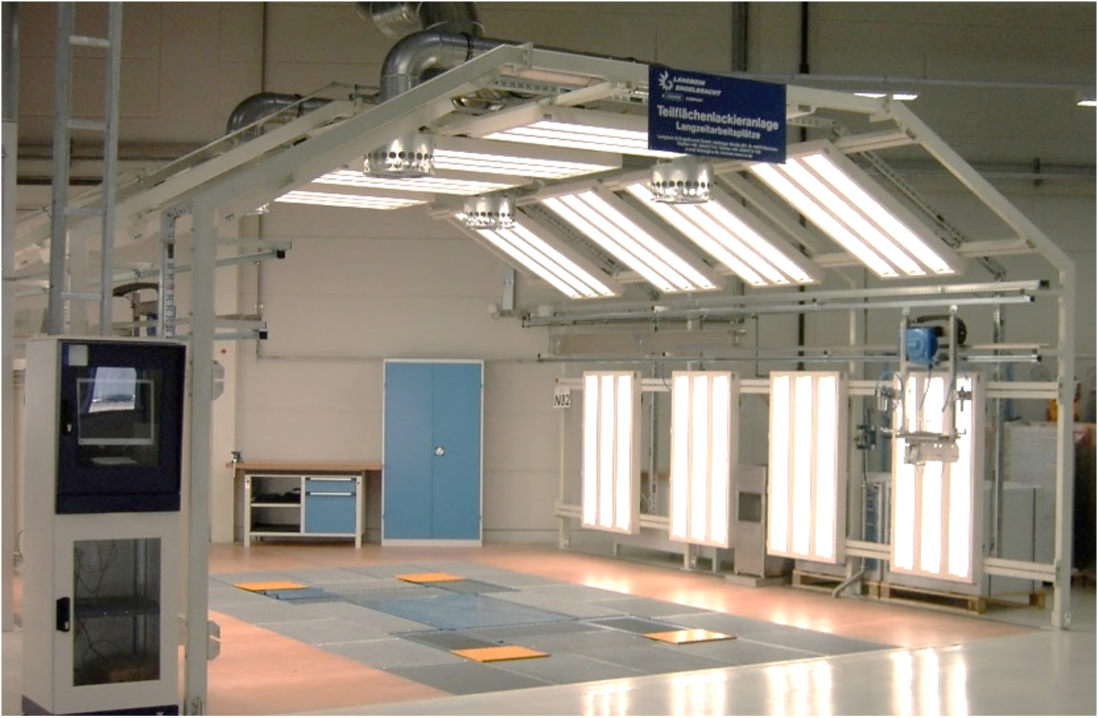

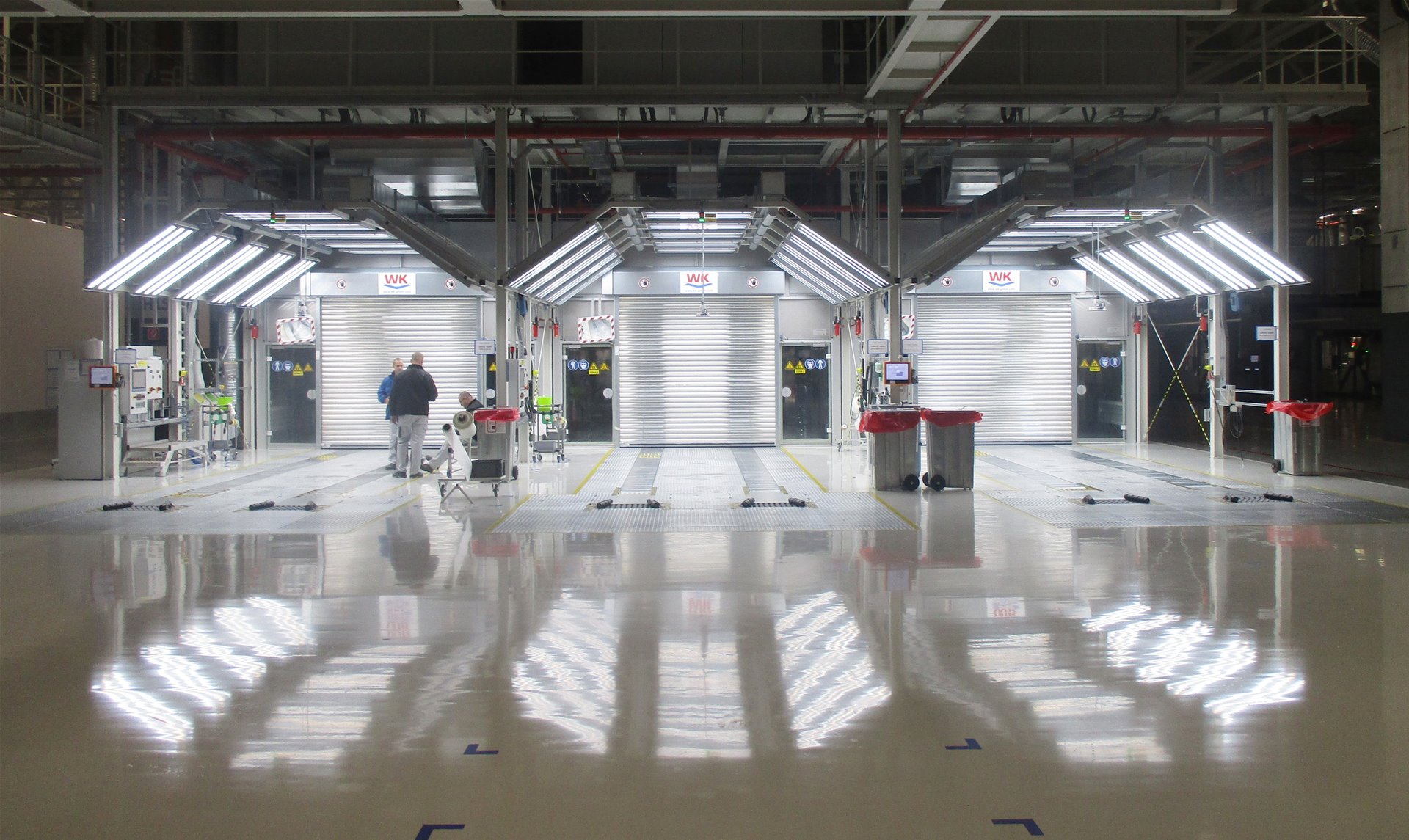

Workstations are an essential part of paint and assembly lines. WK designs and manufactures open and enclosed ergonomic workstations for paint line and assembly line applications. Each work deck is equipped with utility connections, integrated conveyor technology and adjustable LED lighting and engineered to customer specifications and delivered ready for operation.

CONTACT US

Key Features

  • Ergonomic Design
    Workstations configured to support operator comfort and productivity across extended production shifts
  • Dimmable LED Lighting
    Adjustable illumination suited to inspection, painting and assembly tasks
  • Utility Connections
    All required services integrated into the workstation structure
  • Integrated Lift Platforms
    Built-in elevation capability to support access at varying working height
  • Integrated Conveyor Technology
    Seamlessly incorporated into existing paint and assembly line layouts

Ergonomic Variable Work Platform — EVA

The EVA is WK’s purpose-built ergonomic work platform, designed for use in conveyor-linked paint and assembly environments.

specifications

  • Standard lift height: 600 mm (23.6 in) above installation level
  • Self-supporting and tilt-resistant frame construction
  • Maintenance-free, fault-resistant components
  • Platform size: up to 6 m (19.7 ft) in length and 2.5 m (8.2 ft) in width
  • Maximum load capacity: approx. 600 kg (1,323 lbs)
  • Surface options: smooth sheet metal, checker plate or laminated wood
  • Multiple platforms can be connected in the conveyor direction, individually height-adjustable with trip-free transitions between units
  • Optional: Extendable cross platforms for ergonomic access to the rear and front sections of vehicles
